General Specification
Absolute Maximum Ratings
|
Item |
Symbol |
MIN |
Max |
Unit |
|
Supply Voltage |
VDD |
-0.3 |
4.0 |
V |
|
VLCD |
-0.3 |
19.8 |
V |
|
|
Input Voltage |
Vin |
-0.4 |
VDD+0.5 |
V |
|
Absolute Maximum Forward |
Ifm |
-- |
60 |
mA |
|
Reverse Voltage (Backlight) |
Vr |
-- |
3.1 |
V |
|
Operating Temperature |
Topr |
-20 |
70 |
℃ |
|
Storage Temperature |
Tstr |
-30 |
80 |
℃ |
After-sales guarantee:
Non-human damage to the after-sales warranty for 1 year. Some technical problems can be solved by wires.
We can design and customize different sizes, shapes, display icons for segments, characters, graphic LCD displays and modules (including LED backlights, ICs) for your customers. You will send us the demand and we will make you more suitable for your LCD products.

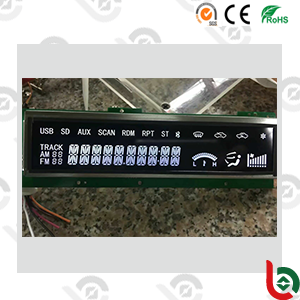

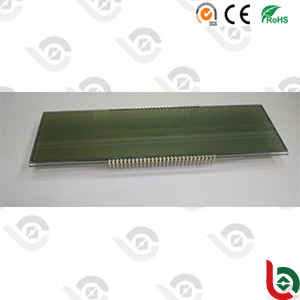

Display Image
Va LCD Screen Pin Connection LCD Display
With RoHS Directive-compliance
· Image reversion: up/down and left/right
· Applications: consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, epos/energy control/amusement and gambling machines/white goods/mobile phones and PDAS
Moreover, our company has passed ISO 9001, ISO14001, TS16949 certifications as well as RoHS and REACH.
Contact: Mrs. Echo
Phone: 86-138-27213376
Tel: 86-769-81581872
Email: echo@smartwinlcd.cn
Add: Shangyu Commercial Centre ChangAn, Dongguan, Guangdong, China 523881
